Double Break Isolator/Disconnector

Overview
Standards IEC 62271-102: 2018
Design Double Break Centre Post Rotating
Voltage Rating 12 to 420 kV
Current Rating 200 to 3150 Amps
Short-Time Current Rating From 16kA/1s to 50kA/3s
Operating Mechanism Motor Operated, Gear Operated, Handle Operated
Special Purpose Applications Underhung, Tandem, Vertically Mounted, Double break with Double ES

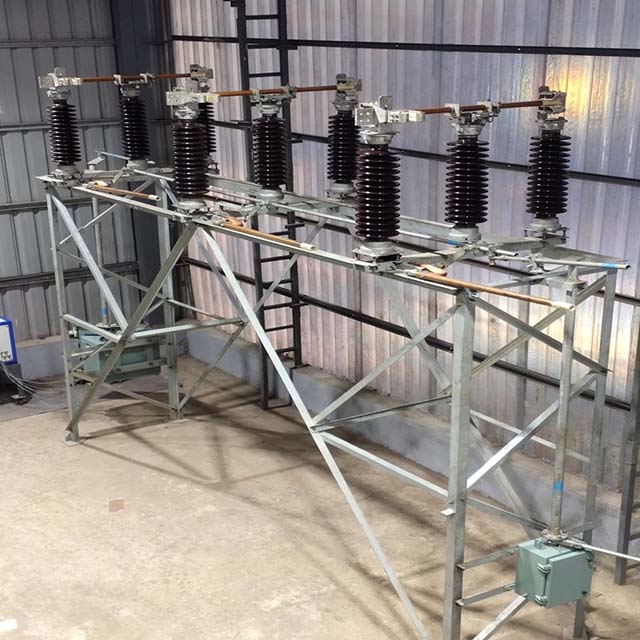

A galvanized steel double break electrical isolator for use in a high-voltage substation.

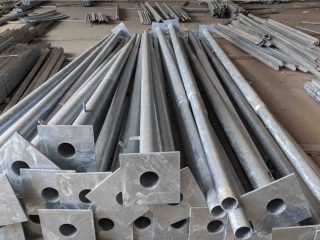

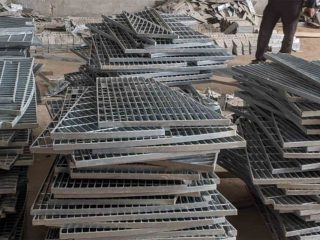

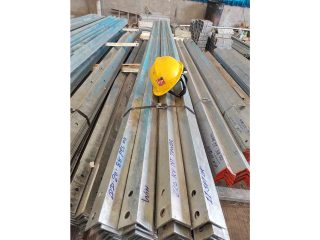

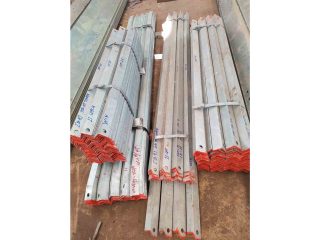

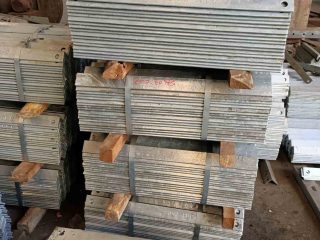

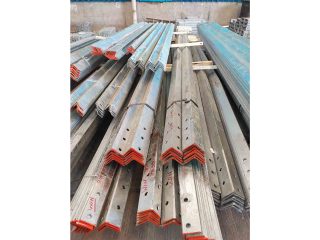

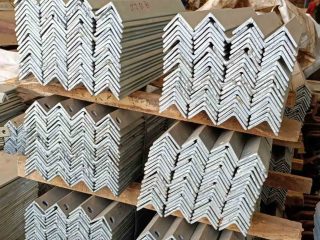

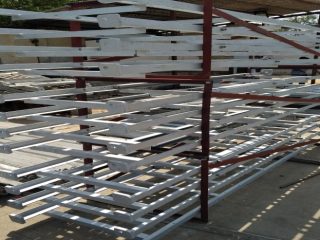

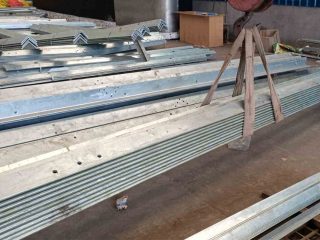

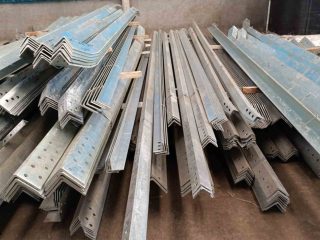

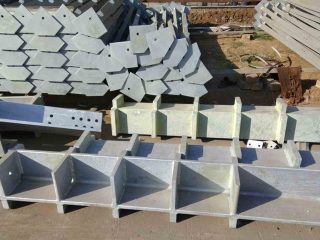

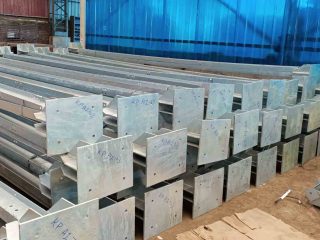

A collection of finished galvanized steel structures at a manufacturing plant.
Assembly line at KP Green Engineering factory assembling transmission tower components
Interior view of KP Green Engineering’s steel fabrication workshop

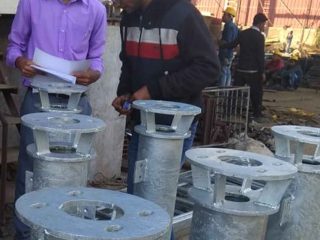

Quality inspection of galvanized steel structures in KP Green Engineering’s finishing area
